Dryer(Gas)

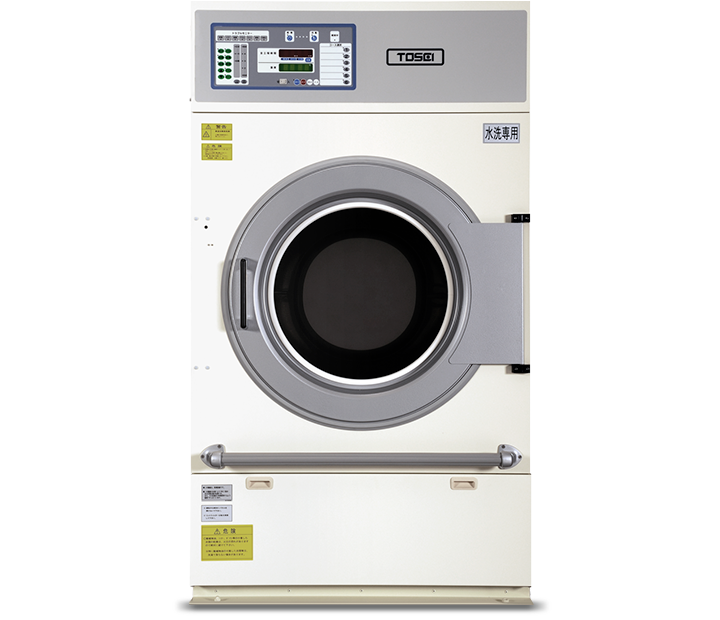

TG Series [TG-226]
- Tosei dryers dry quickly yet gently, minimizing damage to fibers.
- Gas-powered dryer for low installation cost TG Series.
- Drying22kg
- Product No.
- TG-226
- Power
- AC200V 3-phase, 50/60Hz
- Max load capacity
- 22kg
- External dimensions
- 940 x 1275 x 1725mm
- Weight
- 340kg
- Drum size
- 900 diameter x 780 length
- Rotation
- Forward reverse, one direction, auto, random switch
- Drum Rotation
- 38 to 46rpm (5 steps)
- Motor capacity
-
- Drum
- 0.4kW
- Fan
- 0.4kW
- Gas consumption
-
- LP gas
- 23.3kW , 1.66kg/h
- LNG
- 23.3kW(12A, 13A)
- Air flow
- 13m3/min
- Exhaust connection
- Φ200
- Pipe Diameter
-
- Gas inlet
- 15A
Other lineup
-
TG-136
Drying : 13kg
-
TG-226
Drying : 22kg
-
TG-356
Drying : 35kg
| Product No. | TG-136 | TG-226 | TG-356 | |
|---|---|---|---|---|
| Power | AC200V 3-phase, 50/60Hz | AC200V 3-phase, 50/60Hz | AC200V 3-phase, 50/60Hz | |
| Max load capacity | 13kg | 22kg | 35kg | |
| External dimensions | 800 x 1212 x 1795mm | 940 x 1275 x 1725mm | 1200 x 1534 x 1985mm | |
| Weight | 240kg | 340kg | 480kg | |
| Drum size | 760 diameter X 630 length | 900 diameter X 780 length | 1100 diameter X 850 length | |
| Rotation | Forward reverse, one direction, auto, random switch | Forward reverse, one direction, auto, random switch | Forward reverse, one direction, auto, random switch | |
| Drum rotation speed | Drying | 44～52rpm(5 levels) | 38～46rpm(5 levels) | 31～39rpm(5 levels) |
| Motor capacity | Drum | 0.4kW | 0.4kW | 0.75kW |
| Fan | 0.4kW | 0.4kW | 0.75kW | |
| Gas consumption | LP gas | 17.4kW／1.25kg/h | 23.3kW／1.66kg/h | 34.9kW／2.49kg/h |
| LNG | 17.4kW（12A, 13A） | 23.3kW（12A, 13A） | 34.9kW（12A, 13A） | |
| Air flow | 10m3/min | 13m3/min | 16m3/min | |
| Exhaust diameter | Φ200 | Φ200 | Φ200 | |
| Pipe Diameter | Gas inlet | 15A | 15A | 20A |
