Dryer for Drycleaning(Oil-Recovery Model)

HRD Series [HRD-222S]

HRD Series HRD-222S

  • High-recovery dryer seires high-speed solvent recovery and can recover close to 90% of solvent.
  • Drying22kg
Product No.
HRD-222S
Power
AC200V 3-phase, 50/60Hz
Max load capacity
22kg
External dimensions
1000 x 1530 x 1920mm
Weight
550kg
Drum size
900 diameter x 780 length
Drum rotation speed
38～45rpm(3 levels)
Motor capacity
Drum
0.4kW/4P(inverter-driven)
Fan
1.5kW/4P(inverter-driven)
Pipe Diameter
Steam
Steam Supply 20A,Steam Discharge: 20A
Refrigerant
High Pressure: Diameter 9.52mm, Low Pressure: Diameter 15.88mm
Steam pressure
0.4MPa
Steam consumption
About 20 kg/h
Air flow
10m3/min
Exhaust diameter
Φ200
Air Port Size
8A (Air Hose Diameter 6mm)
Air Pressure
0.5MPa

High-recovery dryers HRD Series HRD-222S

Other lineup

  • HRD-161HS (high-speed type) HRD-161HS
    (high-speed type)     Drying : 16kg
  • HRD-222S HRD-222S Drying : 22kg

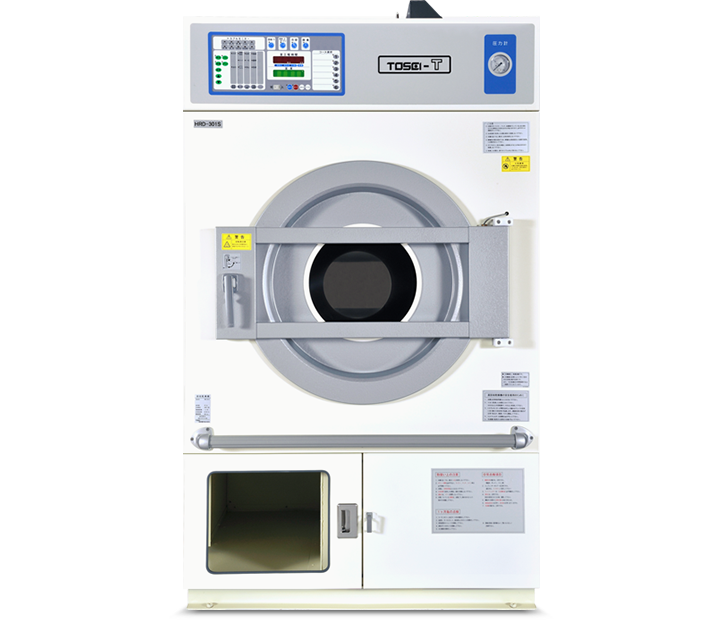

  • HRD-301S HRD-301S Drying : 30kg
Product No. HRD-161HS HRD-222S HRD-301S
Power AC200V 3-phase, 50/60Hz AC200V 3-phase, 50/60Hz AC200V 3-phase, 50/60Hz
Max load capacity 16kg 22kg 30kg
External dimensions 900 x 1510 x 1860mm 1000 x 1530 x 1920mm 1120 x 1608 x 2084mm
Weight 480kg 550kg 610kg
Drum size 800 diameter X 725 length 900 diameter X 780 length 1020 diameter X 826 length
Drum rotation speed 41～45rpm(3 levels) 38～45rpm(3 levels) 37～41rpm(3 levels)
Motor capacity Drum 0.4kW/4P(inverter-driven) 0.4kW/4P(inverter-driven) 0.4kW/4P(inverter-driven)
Fan 0.75kW/4P(inverter-driven) 1.5kW/4P(inverter-driven) 1.5kW/4P(inverter-driven)
Pipe Diameter Steam Steam Supply 20A,Steam Discharge: 20A Steam Supply 20A,Steam Discharge: 20A Steam Supply 20A,Steam Discharge: 20A
Refrigerant High Pressure: Diameter 9.52mm, Low Pressure: Diameter 15.88mm" High Pressure: Diameter 9.52mm, Low Pressure: Diameter 15.88mm" High Pressure: Diameter 12.7mm, Low Pressure: Diameter 19.05mm"
Steam pressure 0.4MPa 0.4MPa 0.45MPa
Steam consumption About 20 kg/h About 20 kg/h About 40 kg/h
Air flow 6m3/min 10m3/min 12m3/min
Exhaust diameter Φ200 Φ200 Φ200
Air Port Size 8A (Air Hose Diameter 6mm) 8A (Air Hose Diameter 6mm) 8A (Air Hose Diameter 6mm)
Air Pressure 0.5MPa 0.5MPa 0.5MPa
