Refresh steamer(Coin-operated)

FRDG-150C

FRDG-150C

Instruction Manual/Specifications/Outline Drawing

Easy setting
Height designed to facilitate the setting We’ve adjusted the height to make it easy for elderly people and women to use.
Band to prevent dry air leaking Our unique band secures the futon in place to ensure hot air passes effectively through it
Easy to move and does not damage the ﬂoor The unit is designed with casters for easy movement.

<Product Features>

Specification

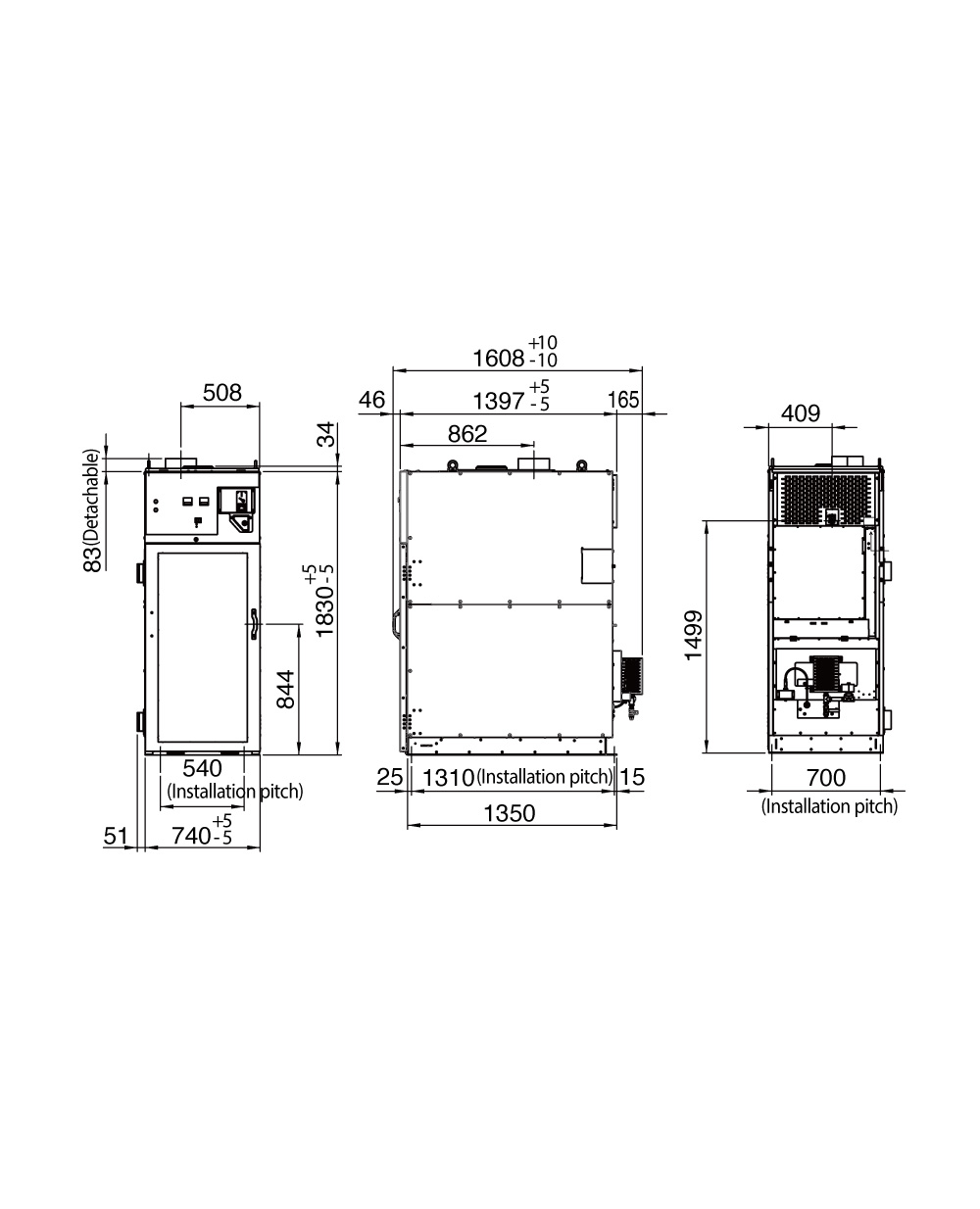

Drawing

Drying capacity: 1 single size futon

Body color: Stainless

Left/right door switching: ●

Acceptable coins: T.B.D. (local coins)

Power: AC200V 3 phase 50/60Hz

Drying / heating system: Open drying / gas burner heating

External dimensions: 791 (W) x 1562 (D) x 1864 (H) mm

Weight: 430kg

Rated electricity consumption: 1400W

Drying heat source/gas consumption: LP gas: 20.9kW (1.5 kg/h) Mains gas (13A): 20.9kW

Air flow: 12.5 m³/min

Exhaust diameter: Diameter: 200 mm

Pipe diameter: Gas supply: 15A

*Contact us for details on the gas consumption of city gas 12A.
*The depth dimension does not include the handle.
