TOP Products | Laundry Machines Dryer (Electric)

Dryer (Electric)

TE-226

  • Tosei dryers dry quickly yet gently, minimizing damage to fibers. Electrical dryer enables precise temperature control for gentle, fluffy drying action.
  • Drying22kg
Power
AC200V 3-phase, 50/60Hz
Max load capacity
22kg(JIMS 20kg)
Drum size
900 diameter x 780 length
Rotation
Forward reverse, one direction, auto, random switch
Drum rotation
38 to 46rpm (5 steps)
Motor capacity
Drum 0.4kW, Fan 0.4kW
Current value
60A
Electricity capacity
17kW
Heater capacity
16.2kW
Air flow
Drying process 6 to 15m³/Cold blast process 15m³/min
Exhaust connection
Φ200
Size(W × D × H)
1000 x 1300 x 1795mm
Weight
350kg

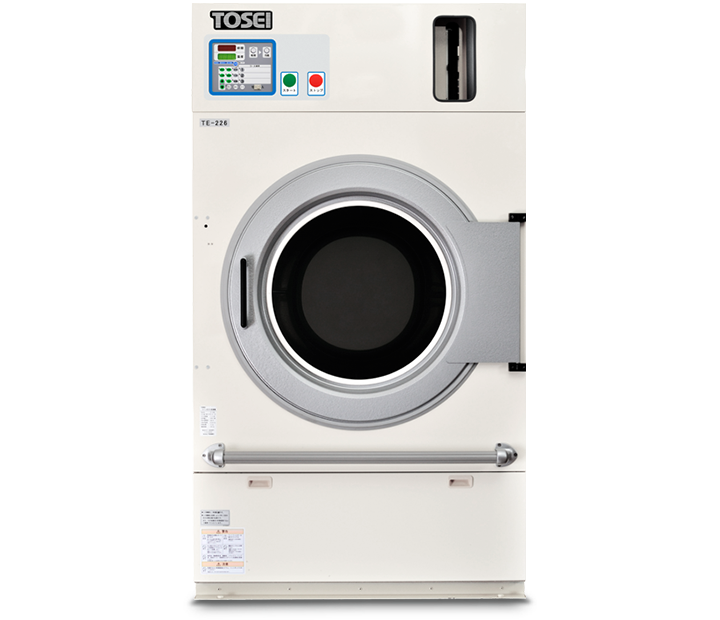

Electrical dryers TE-226
